Description

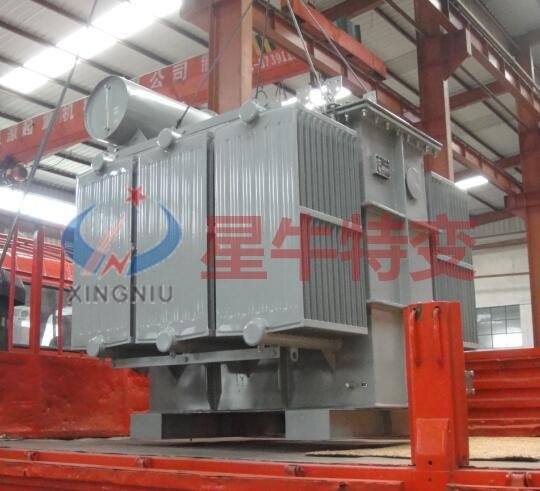

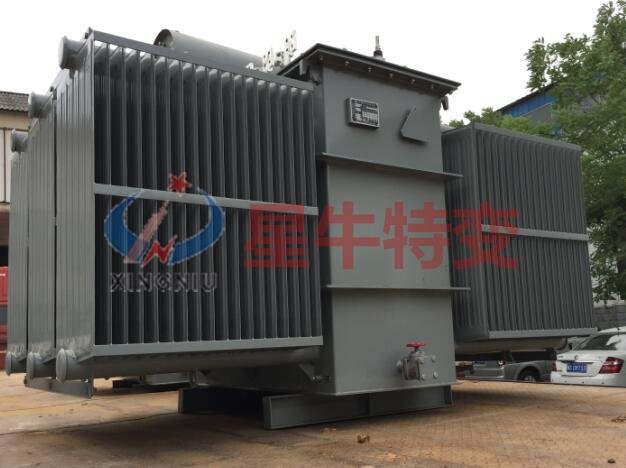

6-Pulse Medium Frequency Furnace Transformer
6-Pulse Medium Frequency Furnace Transformer is designed for induction furnace and smelting power supply systems. It supports reliable operation under high current impact, load fluctuation and demanding furnace working conditions.
Key Features
- Designed for standard 6-pulse rectifier medium frequency furnace systems.
- Strong impact current withstand capability for furnace load changes.
- Oil-immersed structure supports stable cooling and reliable insulation.
- Helps reduce operating temperature and overload risk compared with ordinary transformer selection.
- Can be matched with existing furnace power supply and customized voltage requirements.
Technical Data
| Product Type | 6-Pulse Medium Frequency Furnace Transformer |
|---|---|
| Pulse Number | 6-pulse |
| Capacity | Customized according to furnace power |
| Primary Voltage | 6kV / 10kV or customized |
| Secondary Voltage | Customized according to medium frequency power supply |
| Cooling Method | Oil-immersed natural cooling |
| Application | Induction furnace, melting furnace and foundry equipment |
Application Scope
- Small and medium foundry furnaces
- Induction heating systems
- Steel and non-ferrous metal melting
Available Custom Options
- Primary and secondary voltage
- Rated capacity and overload requirement
- 6-pulse, 12-pulse or multi-pulse rectifier configuration
- Cooling method, impedance, connection group and protection accessories
- Outdoor installation, test reports and export packaging
FAQ
What is 6-Pulse Medium Frequency Furnace Transformer used for?
It is used for small and medium foundry furnaces, induction heating systems, steel and non-ferrous metal melting where stable transformer performance is required under furnace load conditions.
Can the transformer be customized for my furnace system?
Yes. Primary voltage, secondary voltage, capacity, impedance, pulse design, cooling method and connection group can be customized according to the furnace power supply.
What information is needed for selection?
Please provide furnace tonnage, power rating, rectifier type, pulse number, primary voltage, secondary voltage, frequency, operating environment and destination country.
