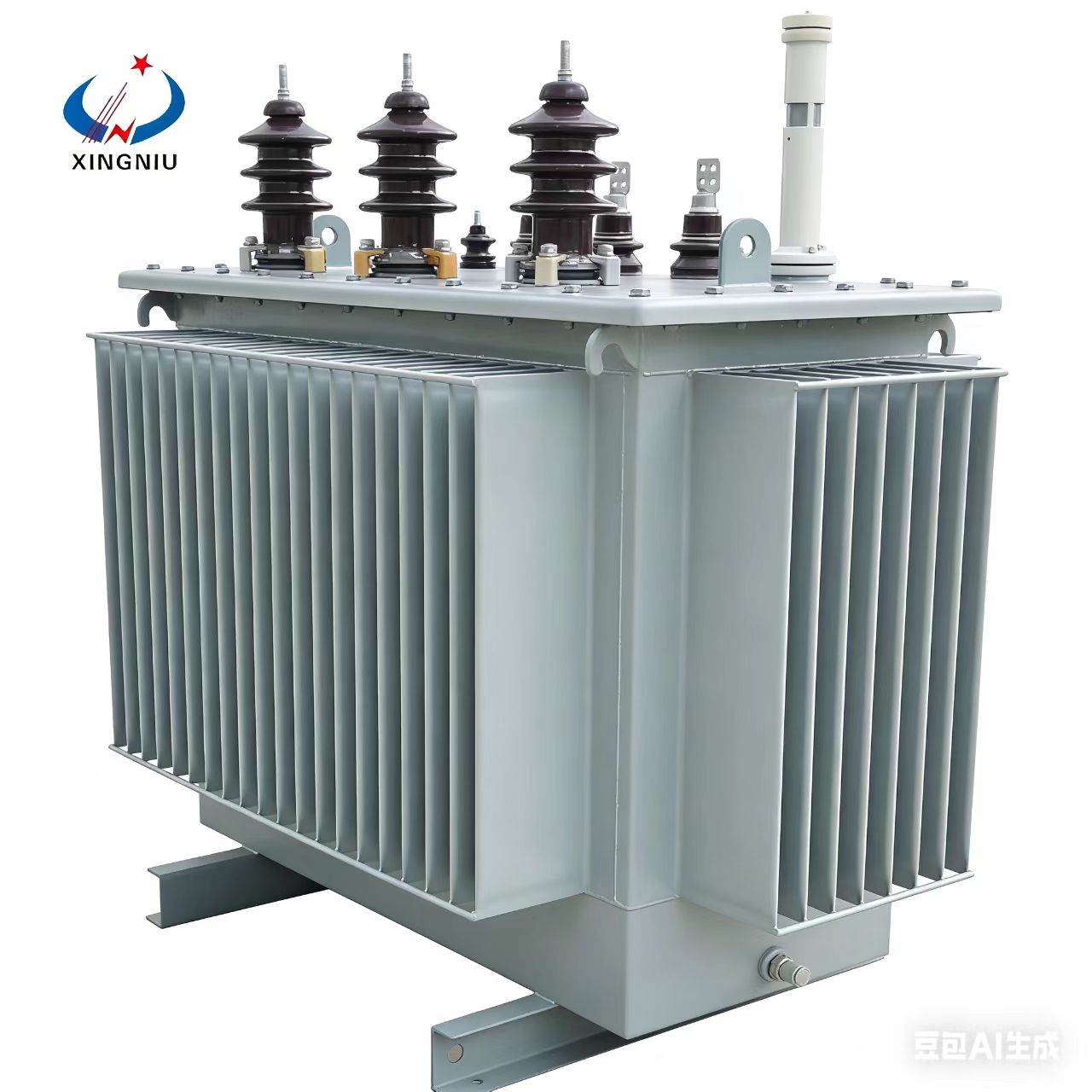

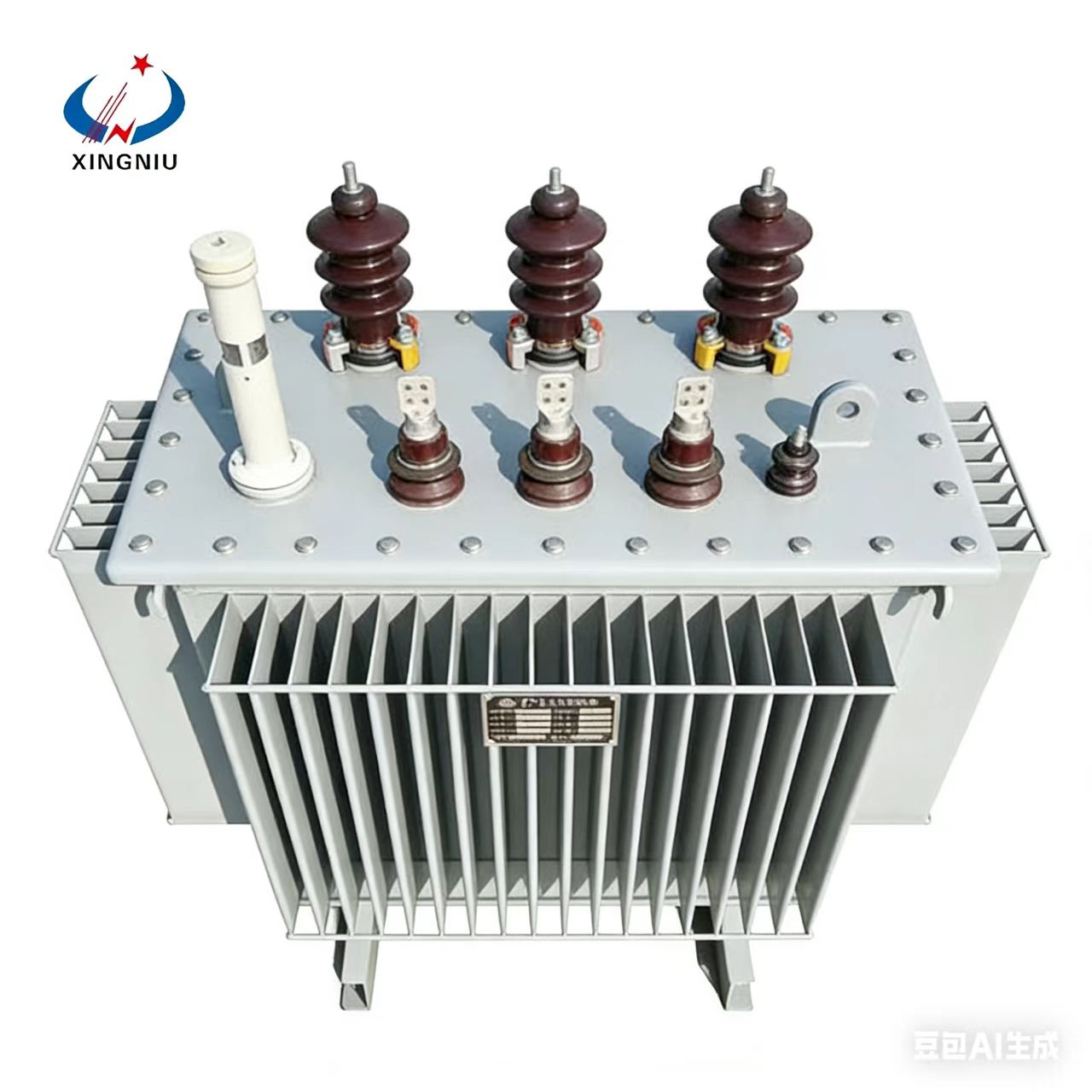

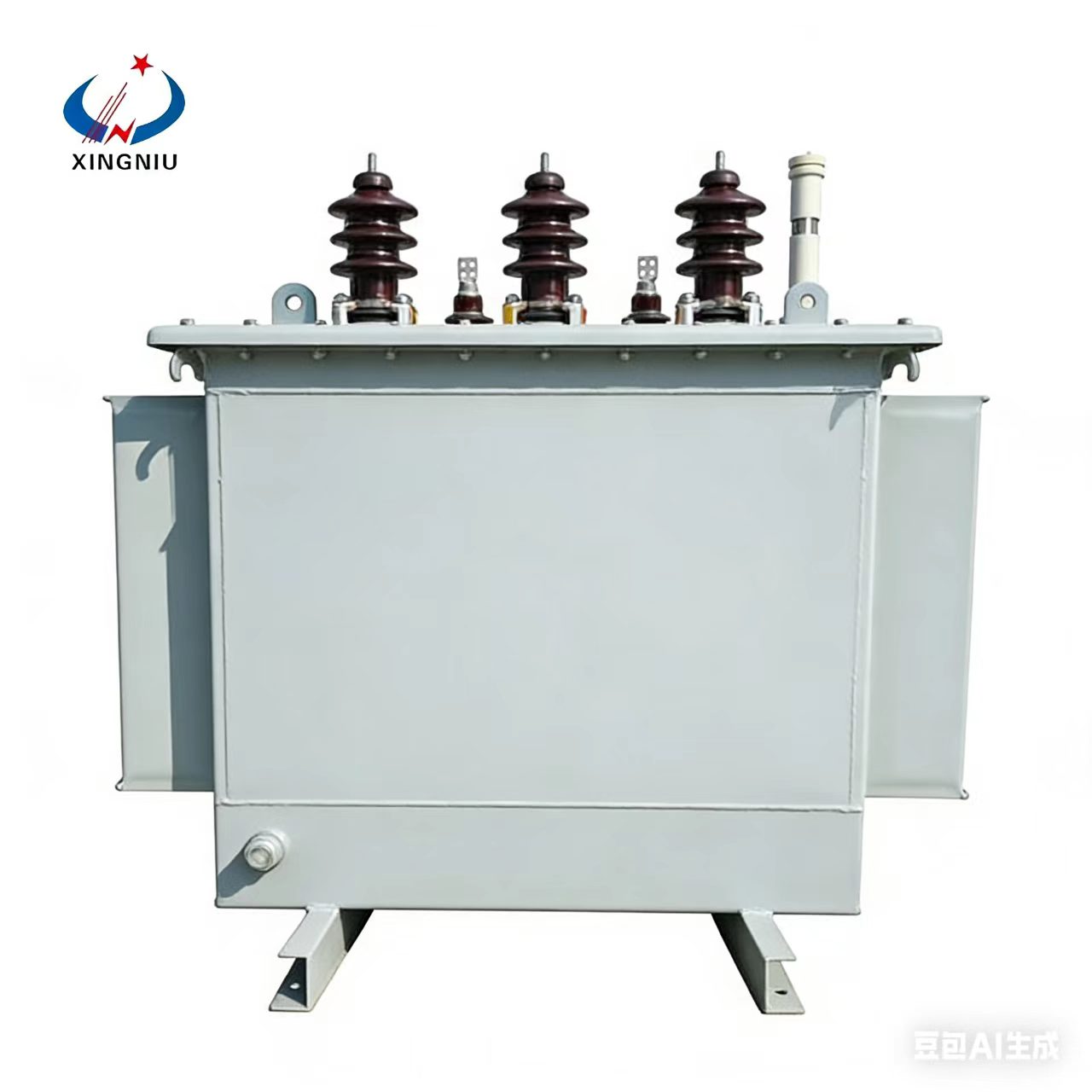

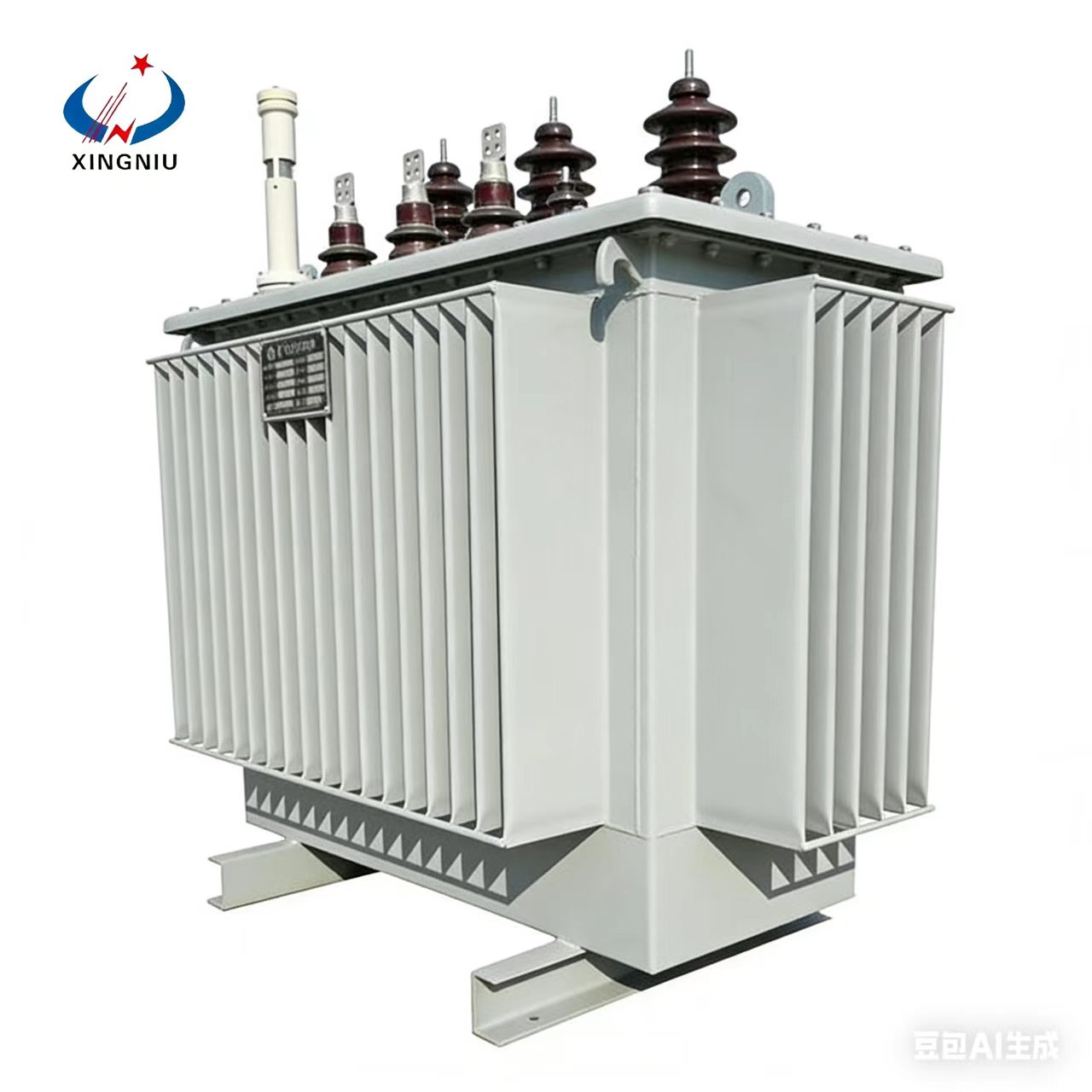

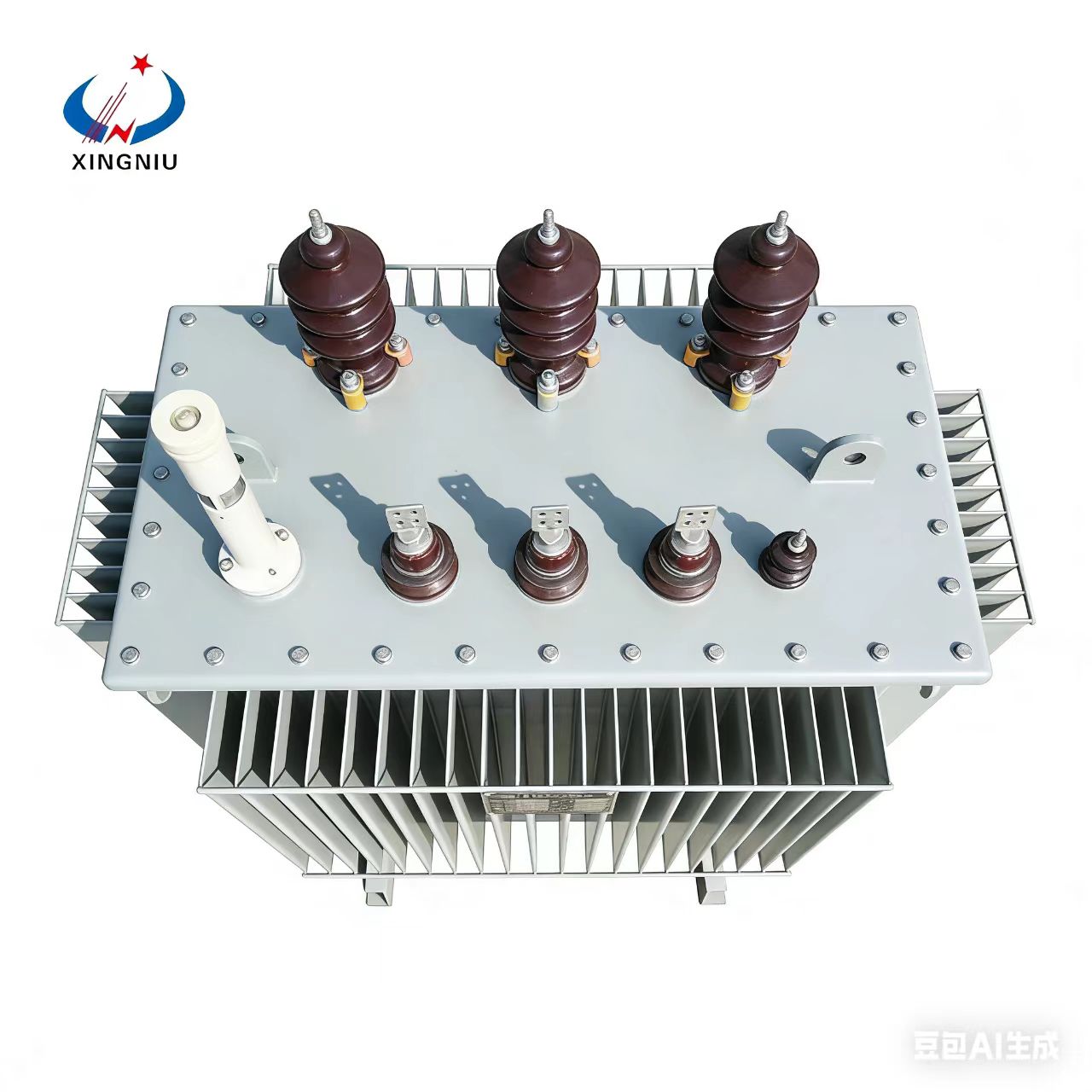

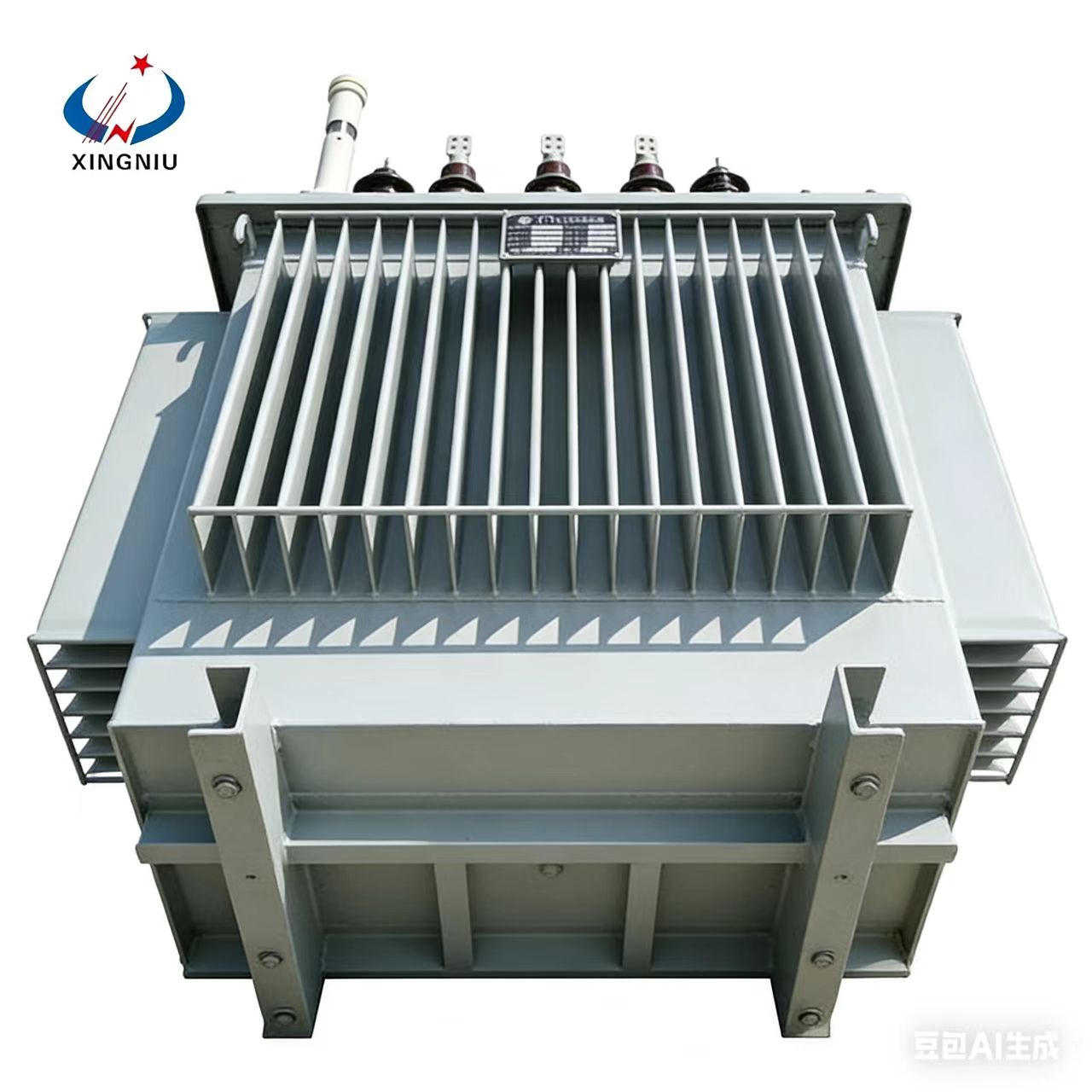

6KV-13KV oil immersed transformer
Technical Parameters of 6–13.2kV Distribution Transformer
Manufacturer: Luoyang Xingniu Transformer Co., Ltd.
General
– Type: Oil-immersed, hermetically sealed / conservator type – Phase: 3-phase
– Frequency: 50Hz / 60Hz – Rated Voltage Class: 6kV, 10kV, 11kV, 13.2kV
Standard Ratings
– Rated Power: 50kVA, 80kVA, 100kVA, 125kVA, 160kVA, 200kVA, 250kVA, 315kVA, 400kVA, 500kVA, 630kVA, 800kVA, 1000kVA, 1250kVA, 1600kVA, 2000kVA, 2500kVA
Voltage Combinations (typical)
– Primary: 6kV, 10kV, 11kV, 13.2kV – Secondary: 0.4kV, 0.415kV, 0.433kV
– Tap Changer: Off-circuit tap changer ±2×2.5%
Performance
– No-load Loss: Complies with IEC 60076, GB/T 1094, IEEE C57.12.00 – Load Loss: Meets high-efficiency / premium efficiency level
– Impedance Voltage: – ≤500kVA: 4.0%
– 630–2500kVA: 4.5% or 5.0% – Insulation Level:
– 10kV class: LI 75kV / AC 35kV – 13.2kV class: LI 95kV / AC 40kV
Cooling & Insulating Medium
– Cooling: ONAN – Insulation Oil: Mineral oil / Environmentally friendly ester oil
Connection Group
– Dyn11 (standard) – Yyn0 (optional)
Operating Conditions
– Altitude: ≤1000m – Ambient Temperature: -25°C ~ +40°C
– Temperature Rise: – Oil: 55K
– Winding: 65K
Standards
– IEC 60076 – GB/T 1094
– ANSI / IEEE C57 series
Application scope:
residential communities, towns and villages, commercial districts, schools, hospitals, mines, metallurgy, chemical industry, mechanical processing, textiles, food processing, highway service areas, railway base stations, construction sites, temporary markets, government streetlights, sewage treatment plants, garbage transfer stations.
Application Scope of 6–13 kV Transformers
These transformers belong to the category of medium‑voltage distribution transformers, mainly used for voltage conversion and power supply in urban/industrial distribution networks, industrial and mining enterprises, and infrastructure.
1. Main Application Fields
1. Urban Power Grid Distribution
– Power supply for residential communities, commercial complexes, office buildings, hospitals, schools and other end‑users
– Main transformers / distribution transformers in urban ring main units, box‑type substations and distribution rooms
2. Industry & Manufacturing
– Internal power supply for factories, workshops and production lines
– Small and medium‑sized industrial loads in mining, metallurgy, chemical industry, machinery manufacturing, etc.
– Centralized power distribution in industrial parks and development zones
3. Infrastructure & Public Buildings
– Traction / auxiliary power supply systems for rail transit (subways, light rails)
– Main / backup power supply for airports, high‑speed rail stations, data centers
– Street lighting, water supply and drainage pump stations, sewage treatment plants
4. New Energy & Supporting Facilities
– Box‑type step‑up / distribution transformers for photovoltaic and wind power projects
– Centralized power supply transformers for energy storage stations and EV charging stations
5. Commercial & Special Scenarios
– Hotels, shopping malls, cold chain logistics, supermarkets
– Temporary power supply transformers for construction sites
2. Typical Working Parameters
– High voltage side: 6 kV / 10 kV / 13 kV
– Low voltage side: 0.4 kV (380/220 V)
– Function: Step down medium‑voltage grid power to low‑voltage power for civil / industrial use
