Description

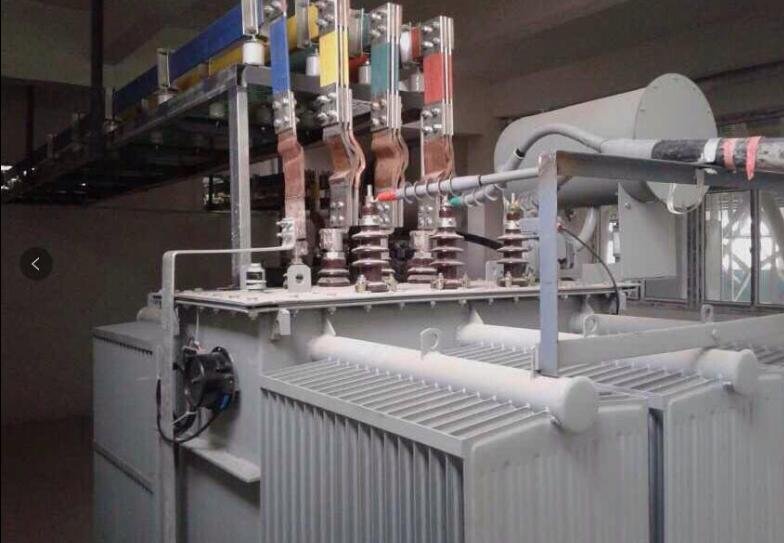

Medium Frequency Furnace Transformer
Medium Frequency Furnace Transformer is designed for induction furnace and smelting power supply systems. It supports reliable operation under high current impact, load fluctuation and demanding furnace working conditions.
Key Features
- Designed for high current impact, frequent load fluctuation and furnace overload operation.
- Strong short-circuit withstand capability for medium frequency furnace power supply.
- Optimized core, winding and cooling structure help reduce temperature rise and operating loss.
- Suitable for steel, copper, aluminum, zinc, nickel and alloy melting applications.
- Voltage ratio, impedance, connection group and rectifier configuration can be customized.
Technical Data
| Product Type | Medium Frequency Furnace Transformer |
|---|---|
| Application | Induction furnace, melting furnace and metal heating equipment |
| Primary Voltage | 6kV / 10kV / 35kV or customized |
| Secondary Voltage | 400V / 575V / 660V / 750V / 850V / 950V or customized |
| Cooling Method | Oil-immersed natural cooling or customized cooling |
| Winding Material | Copper winding |
| Rated Frequency | 50Hz / 60Hz |
Application Scope
- Induction furnace
- Melting furnace
- Metal heating system
- Steel foundry and alloy smelting workshop
Available Custom Options
- Primary and secondary voltage
- Rated capacity and overload requirement
- 6-pulse, 12-pulse or multi-pulse rectifier configuration
- Cooling method, impedance, connection group and protection accessories
- Outdoor installation, test reports and export packaging
FAQ
What is Medium Frequency Furnace Transformer used for?
It is used for induction furnace, melting furnace, metal heating system, steel foundry and alloy smelting workshop where stable transformer performance is required under furnace load conditions.
Can the transformer be customized for my furnace system?
Yes. Primary voltage, secondary voltage, capacity, impedance, pulse design, cooling method and connection group can be customized according to the furnace power supply.
What information is needed for selection?
Please provide furnace tonnage, power rating, rectifier type, pulse number, primary voltage, secondary voltage, frequency, operating environment and destination country.
